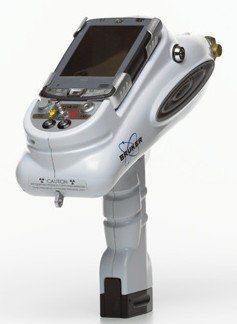

The Tracer III-SD incorporate a proprietary Silicon Drift Detectors (SDD) which provide high speed data acquisition, better resolution than traditional SiPIN detectors and light element sensitivity. Ultimate light element sensitivity can be achieved when the TRACER 5i, Tracer III-SD or Tracer IV-SD is operated with the optional vacuum system.

Benefits at a glance

The capabilities of a bench-top instrument, with the convenience of a handheld
Powerful PC based analytical software which provides live spectral display and complete peak identification
Customizable filters and secondary targets to optimize analysis (TRACER 5i and Tracer III series only)
Live-time spectral display
Vacuum technology developed in partnership with NASA for the space shuttle program
A mounting bracket for a tripod to allow precise three dimensional positioning of the analyzer
Proprietary SDD technology (TRACER 5i and Tracer III-SD and IV-SD only)
Unmatched application training and support, including a network of scientists with Tracer expertise
Benchtop-like calibration and application development

Technical Details:

Integrated camera: Optional
Weight: 2 kg (4.49 lbs) with Batteries; 1.77 kg (3.9 lbs) base weight
Size: 30 cm(L) x 10 cm(w) x 28 cm(H)
Detector: 10 mm2 XFlash® SDD; peltier cooled; typical resolution 145 eV at 100,000 cps
X-ray tube: Rh target; max voltage 40 kV
Filter changer: Manual filter for optimum flexibility; 4 filter kit supplied
Vacuum pump attachment: Yes. Allows for enhanced light element sensitivity
Gas flow chamber: Yes. Allows for the measurement of gases down to Ne
Software-driven voltage and current control: Included
Instrument stand: Included, for desktop applications
