CDI TORQUE TESTER DTT 4002-I-DTT

Price:

$664.00

SKU:

TS0549

Brand:

CDI

Condition:

New

Rating:

Availability:

In Stock

Shipping:

$40.00 (Fixed shipping cost)

CDI Torque Tester DTT 4002-I-DTT

Features:

Integral Transducer and sturdy housing allow mounting in virtually any position
Integral Transducer: Full bridge strain gage, 350 ohm,
1500uE, 3mV/V F.S, 3.75 excitation.
Units of Torque: Nm, kgcm, ft.lb., in.lb., kgm
Audible (tone)
Torque Accuracy: ±0.5% CW and CCW from 5.6 to 100% of full scale at 25° C
LCD Touch Screen: 4.7 in. color graphics display
Screen resolution: 480 X 272 pixels
110 Volt AC/DC power supply included
Display Accuracy: 4 digits, 9999 cycle counts
Memory Capacity – 500 Records (Complete Check Mode Only.)
Data can be offloaded by USB drive or cable
Six "AA" Alkaline cells for battery power included
Track, Peak and First Peak modes of operation
Operating Temperature: 40 to 110° F (5 to 42° C)
Storage Temperature: 0 to 122° F (-20 to 50° C)
Humidity up to 85% non-condensing
ISO-6789-2003 and ASME B107-28-2005 standards compliant
Certificate of N.I.S.T. traceability from 5.6 to 100% of full scale

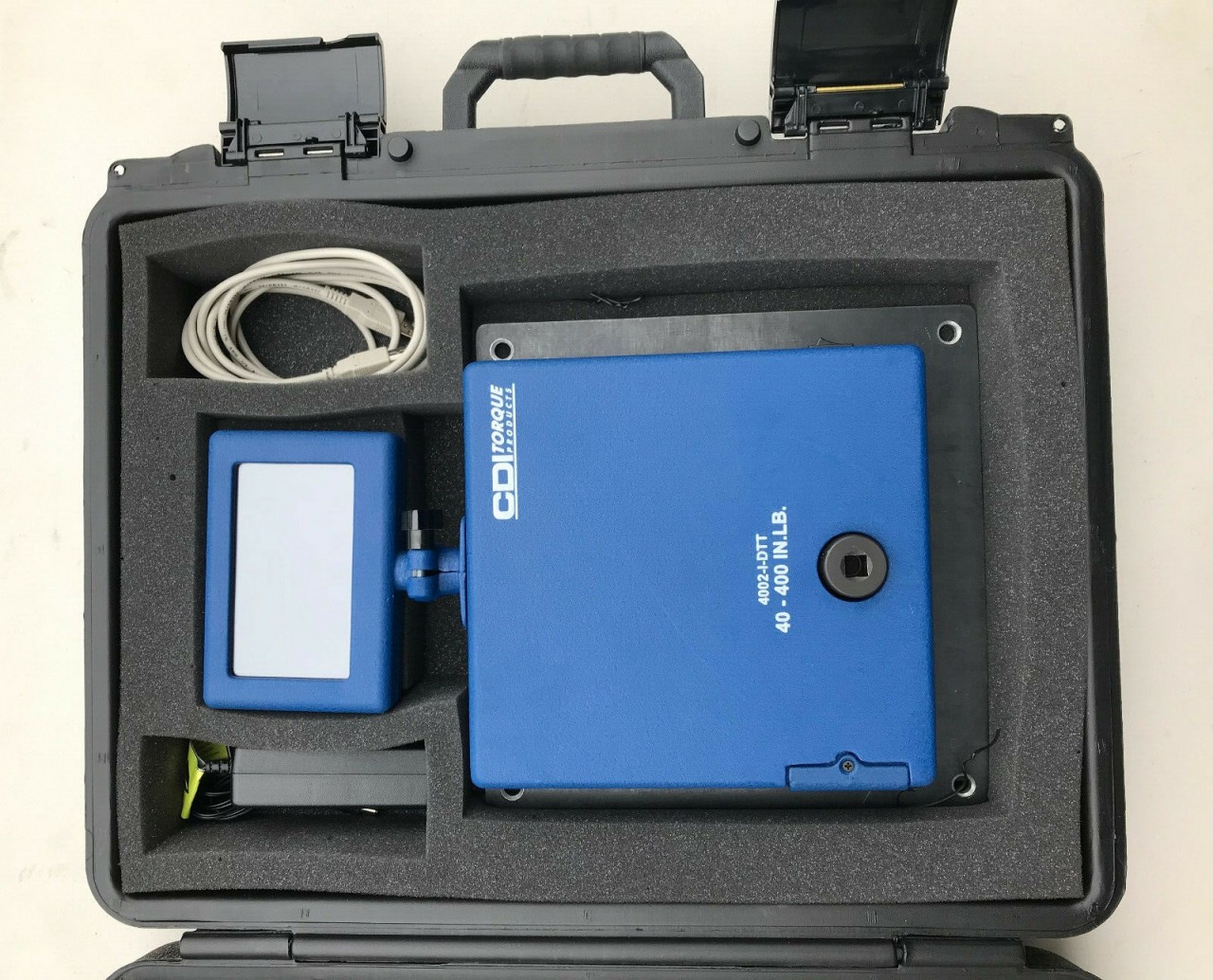

Includes storage case, AC adapter and USB cable
Dimensions: W - 10” x H - 16” x D - 2.5” Weight: (Tester Only) - 10.7 lbs., (with Carrying Case) - 17.4 lbs.
